Description
Overview

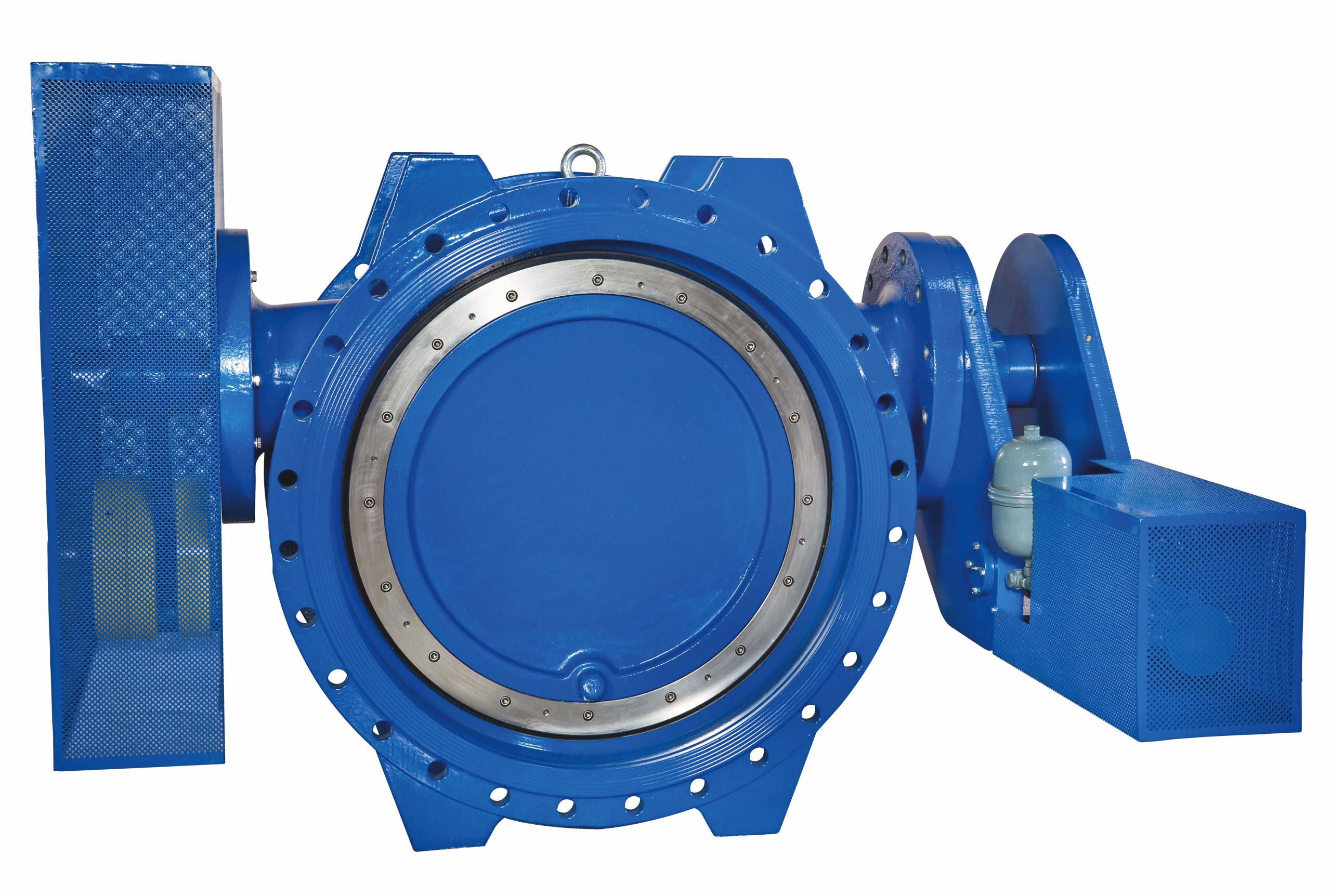

- Tilted Disc Check Valve
- The Tilted Disc® Check Valve is an excellent choice for raw water, cooling water and treated water/wastewater applications. Its streamlined body contouring, flow area 40% greater than nominal pipe size and hydrodynamic disc combine to provide the lowest headloss of any check valve produced today..
- (Optional) Top Mounted Oil Cushioned Dashpot: Controls both the full opening and full closing stroke of the valve.
- (Optional) Bottom Mounted Dashpot: Used on High Service Pumping Applications where there is a propensity for a rapid flow reversal.
Features
- Body: ASTM A536 Ductile Iron, Lead Free Bronze, or ASTM A126 Cast Iron, CF8M Stainless Steel, or WCB Carbon Steel
- 6” -60” Size Range
- 400 PSI CWP Rated
- CL-125#, CL-250#, Flanged Ends Available
- Metal Seated
